    G.652.D Single Mode LC UPC Patch Cord 0.9mm Types With PVC Jacket

    Ask Lasest Price
    Brand Name : Zion communication OR OEM
    Model Number : LC UPC 12 Fibers G.652.D
    Certification : ISO, CE, RoHS, UL
    Payment Terms : T/T, L/C
    Supply Ability : 30,000 PCS / Month
    Delivery Time : Normally 25 workingdays
    • Product Details
    • Company Profile

    G.652.D Single Mode LC UPC Patch Cord 0.9mm Types With PVC Jacket

    Fiber Optic Patch Cord

    SC LC FC ST/APC UPC 0.9/2.0/3.0mm Single Mode/Multimode PVC/LSZH Fiber Optic patch cord/pigtails.

    Inquire Now
    G.652.D Single Mode LC UPC Patch Cord 0.9mm Types With PVC Jacket

    LC UPC 12 Fibers G.652.D Single Mode Bunch PVC 0.9mm With Jacket FOPT

    LC UPC 12 Fibers
    G.652.D Single Mode Bunch PVC 0.9mm with Jacket FOPT
    11F12111-2
    G.652.D Single Mode LC UPC Patch Cord 0.9mm Types With PVC Jacket
    Product Specification
    Fiber Optic Cable
    Fiber Type Single-mode: OS2 ( G.652.D / G.657.A1 / G.657.A2)
    Multi-mode: OM1(62.5/125), OM2(50(125),
    [(OM3, OM4) (50/125,Laser Optimization)]
    900um/0.9mm Buffer Colour Yellow: SM: OS2 ( G.652.D / G.657.A1 / G.657.A2)
    Orange: OM1, OM2
    Aqua: OM3, OM4
    Customized : Green,Brown,White,Red,Black,Purple,Rose,Slate
    900um/0.9mm Types Single Typical: 1 Fiber
    Bunch Typical: 12 Fibers
    Customized: 4-48 Fibers
    Aramid Yarn (2.0/3.0mm) Aramid yarn is laid over the cable core
    to serve as peripheral strength member.
    Cable Jacket Main material: PVC / LSZH / Plenum (OFNP)
    OD: Simplex: 0.9/2.0/3.0mm Duplex: 0.9/2.0/3.0mm
    Jacket Color Yellow: SM: OS2 ( G.652.D / G.657.A1 / G.657.A2)
    Orange: OM1, OM2
    Aqua: OM3, OM4
    Cable Length 1m, 2m, 3m. other lengths on request
    Product Specification
    Connector
    Connector Type LC, SC, FC, ST, MU, MTRJ, LSH, E-2000

    G.652.D Single Mode LC UPC Patch Cord 0.9mm Types With PVC Jacket

    		 LC ( Lucent Connector/Little Connector/Local Connector)
    Typical Application: High density connections,
    SFP and SFP+ transceivers, XFP transceivers

    G.652.D Single Mode LC UPC Patch Cord 0.9mm Types With PVC Jacket
    Product Specification
    Parameter LC UPC
    SM(OS2)G.652.D/G.657.A1/G.657.A2
    Operating Wavelength(nm) 1310-1550
    Insertion Loss (dB) ≤ 0.3
    Return Loss (dB) ≥ 55
    Repeatability (dB) ≤ 0.1
    Interchangeability (dB) ≤ 0.2
    Tensil Strength (N) ≥ 1000
    Operating Temperature (℃) -20 ~ +85
    Storage Temperature (℃) -40 ~ +85

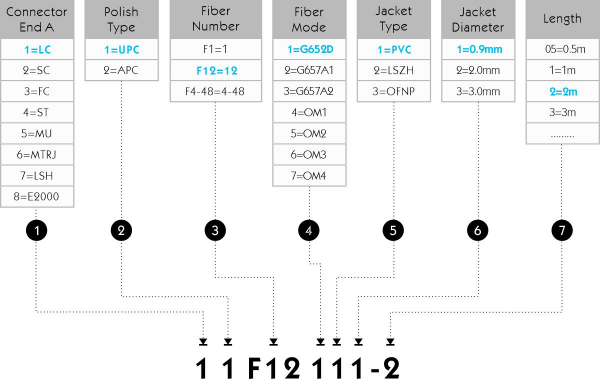

    Zion Code Description
    11F12111-2 LC UPC 12 Fibers
    G.652.D Single Mode Bunch PVC 0.9mm with Jacket FOPT

    G.652.D Single Mode LC UPC Patch Cord 0.9mm Types With PVC Jacket
    OEM/ODM service for you
    ZION Communication has rich expiriences in
    producing OEM/ODM cases becaused of Profession R & D team.
    • Customized Logo
    • Printing on Cable
    • Label/PE bag/Carton design
    • Different Color & Different Lengths Available


    G.652.D Single Mode LC UPC Patch Cord 0.9mm Types With PVC Jacket LC UPC 12 Fibers G.652.D Single Mode Bunch PVC 0.9mm with Jacket FOPT 11F12111-2(7242201)SM(OS2)G.652.D/G.657.A1/G.657.A2 , ,
    G.652.D Single Mode LC UPC Patch Cord 0.9mm Types With PVC Jacket LC UPC 12 Fibers G.652.D Single Mode Unjacketed Color-Coded FOPT 11F12111U-2(7242202)SM(OS2)G.652.D/G.657.A1/G.657.A2 , ,
    G.652.D Single Mode LC UPC Patch Cord 0.9mm Types With PVC Jacket LC UPC 12 Fibers OM1 Multimode Bunch PVC 0.9mm with Jacket FOPT 11F12411-2(7242203)OM1 G.652.D/G.657.A1/G.657.A2 , ,
    G.652.D Single Mode LC UPC Patch Cord 0.9mm Types With PVC Jacket SC UPC 12 Fibers G.652.D Single Mode Bunch PVC 0.9mm with Jacket FOPT 21F12111-2(7242204)SM(OS2)G.652.D/G.657.A1/G.657.A2 , ,
    G.652.D Single Mode LC UPC Patch Cord 0.9mm Types With PVC Jacket SC UPC 12 Fibers G.652.D Single Mode Unjacketed Color-Coded FOPT 21F12111U-2(7242205)SM(OS2)G.652.D/G.657.A1/G.657.A2 , ,
    G.652.D Single Mode LC UPC Patch Cord 0.9mm Types With PVC Jacket SC UPC 12 Fibers OM1 Multimode Bunch PVC 0.9mm with Jacket FOPT 21F12411-2(7242206)OM1 G.652.D/G.657.A1/G.657.A2 , ,
