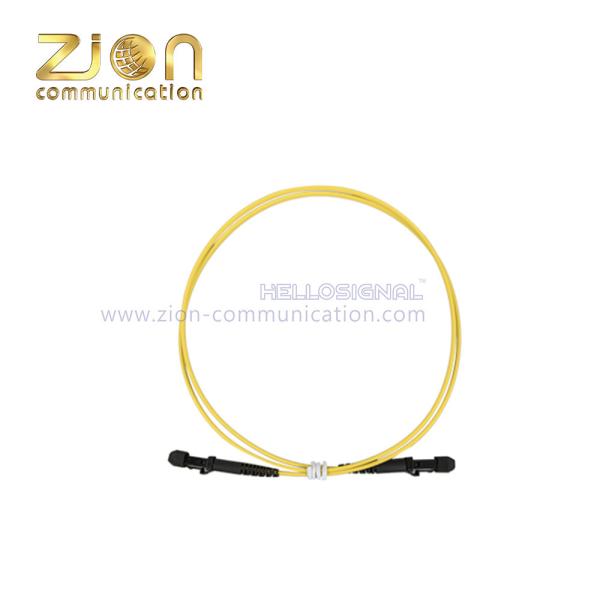

    G652D MTRJ To MTRJ Fiber Optic Patch Cord With 12 Colours

    Ask Lasest Price
    Brand Name : Zion communication OR OEM
    Model Number : MTRJ
    Certification : ISO, CE, RoHS, UL
    Payment Terms : T/T, L/C
    Supply Ability : 30,000 PCS / Month
    Delivery Time : Normally 10 workingdays
    • Product Details
    • Company Profile

    G652D MTRJ To MTRJ Fiber Optic Patch Cord With 12 Colours

    G652D MTRJ To MTRJ Fiber Optic Patch Cord With 12 Colours

    Fiber Optic Patch Cord

    SC LC FC ST/APC UPC 0.9/2.0/3.0mm Single Mode/Multimode PVC/LSZH Fiber Optic patch cord/pigtails.

    Inquire Now

    G652D MTRJ To MTRJ Fiber Optic Patch Cord With 12 Colours

    Fiber Patch Cord — MTRJ Patch Cords

    G652D MTRJ To MTRJ Fiber Optic Patch Cord With 12 Colours

    G652D MTRJ To MTRJ Fiber Optic Patch Cord With 12 Colours
    MTRJ SM MTRJ MM

    Structure information
    Cord Patch Cord & Pigtall
    A Side Connector Type SC / LC / ST / FC / D4 / E2000 / MU····
    Ferrule Type UPC APC
    B Side Connector Type SC / LC / ST / FC / D4 / E2000 / MU····
    Ferrule Type UPC APC
    Fiber Model SM G652D G657A1 G657A2 G657B3 G655 ·····
    MM OM1 OM2 OM3-150 OM3-300 OM4-550 OM5
    Cable Diameter Φ0.9mm Φ2.0mm Φ3.0mm ·····
    Core Number SX DX ·····
    Jacket Material PVC LSZH OFNR RE TPU ·····
    Color Yellow Blue Green Customized
    Cable Length 1m 2m 3m 5m 10m ·····

    Technical Specifcation
    Connector Type FC / SC / LC / ST / D4 / E2000 / MU ···
    Fiber Type SM MM
    Insertion Loss(Typic) ≤0.2 dB ≤0.2 dB
    Insertion Loss(Max) ≤0.3 dB ≤0.3 dB
    Return Loss APC ≥60 dB ≥35dB
    UPC ≥50 dB ≥35dB
    Mating Durability ≤0.2 dB
    Durability ≥1000 times
    Operating Temperature (℃) -20~85
    Operating Temperature (℃) -40~85

    Optical Components

    G652D MTRJ To MTRJ Fiber Optic Patch Cord With 12 Colours

    ADSS Cable Products

    All Dielectric, Stranded Loose tube ADSS Cable, G.652.D, Polyethylene (PE) | AT(anti-tracking)Sheath,
    Gel-filled, Self-supporting, Aramid Yarn| KEVLAR

    Read More>>
    G652D MTRJ To MTRJ Fiber Optic Patch Cord With 12 Colours

    FTTH Drop Cable

    FTTH (fiber to the home) networks are installed in many areas covering indoor and outdoor sections and the transition in between.

    Read More>>
    G652D MTRJ To MTRJ Fiber Optic Patch Cord With 12 Colours

    Fiber Optic Splice Closure

    24/48/96/144 cores IP55 to IP68 PP/PC/PC+ABS Heat-shrink seal/Mechanical seal INLINE OPTIC SPLICE CLOSURE

    Read More>>
    G652D MTRJ To MTRJ Fiber Optic Patch Cord With 12 Colours

    Fiber Optic Terminal Box

    Fiber Optical Terminal Box 4/8/12/16/24/48/96 cores IP55 to IP68 ABS/ABS+PC/PP+glassfiber Mini/Module PLC Splitter OPTIC TERMINAL BOX

    Read More>>
    G652D MTRJ To MTRJ Fiber Optic Patch Cord With 12 Colours

    Fiber Optic Patch Panel

    FTTX project, Data processing centers/Cable television (CATV),Other applications in Fiber optical systems

    Read More>>
    G652D MTRJ To MTRJ Fiber Optic Patch Cord With 12 Colours

    Fiber Optic Patch Cord

    SC LC FC ST/APC UPC 0.9/2.0/3.0mm Single Mode/Multimode PVC/LSZH Fiber Optic patch cord/pigtails.

    Read More>>
    G652D MTRJ To MTRJ Fiber Optic Patch Cord With 12 Colours

    MTP/MPO

    MPO Female To MPO Female SM 3.0mm LSZH 12 Fibers MPO Patch Cord Custom Meters

    Read More>>
    G652D MTRJ To MTRJ Fiber Optic Patch Cord With 12 Colours

    Fiber Optic Splitter

    1*4/1*8/1*16/1*32 Single Mode/Multimode with SC LC FC ST/APC UPC connectors FBT/PLC OPTIC SPLITTER

    Read More>>
    G652D MTRJ To MTRJ Fiber Optic Patch Cord With 12 Colours

    WDM

    Low insertion loss · Wide pass band · High channel isolation 1.02±0.05 mm HDPE · High stability and reliability Modified Polyethylene · Epoxy free on optical path PET Foil

    Read More>>
    G652D MTRJ To MTRJ Fiber Optic Patch Cord With 12 Colours

    Fiber Optic Adapter

    SC LC FC ST/APC UPC SX/DX/QUAD 0.9/2.0/3.0mm Welding Symmetry Plastic/Hybrid OPTIC ADAPTER/COUPLER

    Read More>>
    G652D MTRJ To MTRJ Fiber Optic Patch Cord With 12 Colours

    Fiber Optic Attenuator

    1310-1550nm 2/3/5/7/10 dB SC LC FC ST/APC UPC Low Insertion Loss High Return Loss OPTIC ATTENUATOR

    Read More>>
    G652D MTRJ To MTRJ Fiber Optic Patch Cord With 12 Colours

    Fiber Optic Connector

    SC LC FC ST/APC UPC SX/DX 0.9/2.0/3.0mm Pre-polished Ferrule/FAST Field Assembly OPTIC PATCH CONNECTOR

    Read More>>

    Cabling Infrastructure

    G652D MTRJ To MTRJ Fiber Optic Patch Cord With 12 Colours

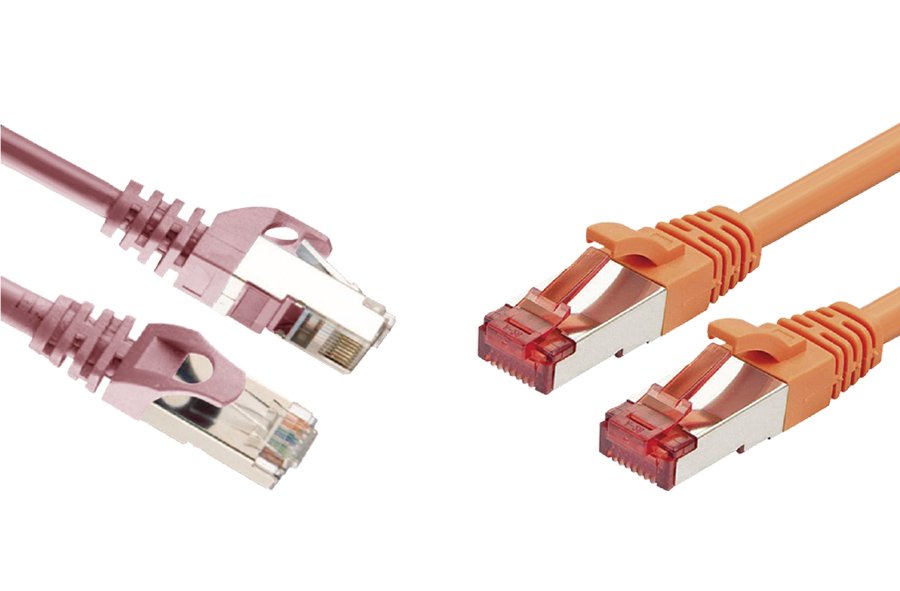

    Copper Patch Cord

    24/26AWG CAT5E/CAT6/CAT6A/CAT7/CAT8 UTP/FTP/SFTP CCA/BC PVC/LSZH RJ45 FU to 50U Copper Patch Cord

    Read More>>
    G652D MTRJ To MTRJ Fiber Optic Patch Cord With 12 Colours

    Bulk Ethernet Cables

    Bulk CAT 5e cables,

    CAT 6 cables, CAT 6a cables,

    CAT7 cables, Cat 8 cables, etc.

    Read More>>

    G652D MTRJ To MTRJ Fiber Optic Patch Cord With 12 Colours

    Server/Network Rack Cabinet

    VE/603/IDC/601S/PE/TE series SPCC Cold Rolled Steel High Loading Capacity Server/Network Rack Cabinet

    Read More>>
    G652D MTRJ To MTRJ Fiber Optic Patch Cord With 12 Colours

    Wall Mount Rack Cabinet

    SE/EW/SA/SB/SQ/VA series SPCC Cold Rolled Steel High Excellent Compression Wall Mount Rack Cabinet

    Read More>>
    G652D MTRJ To MTRJ Fiber Optic Patch Cord With 12 Colours

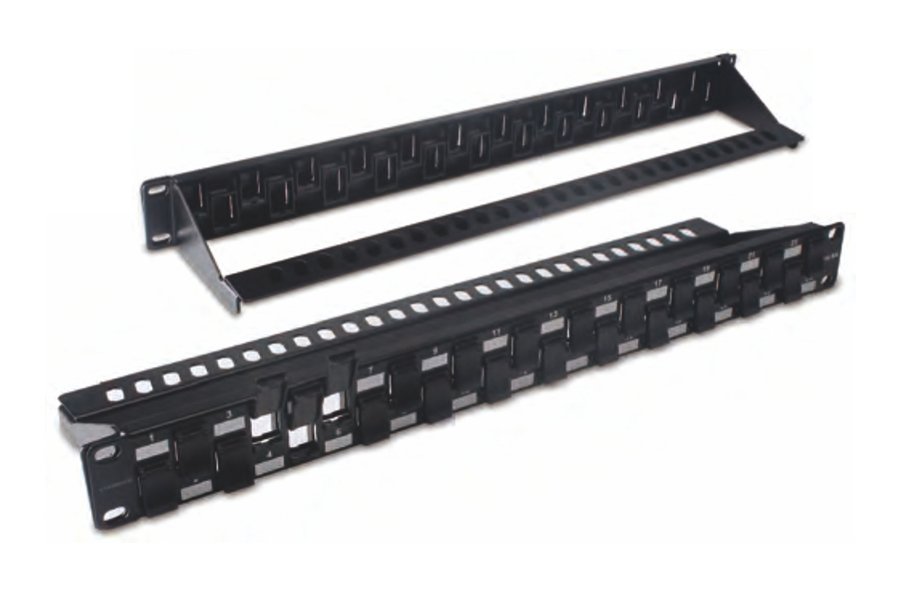

    Copper Patch Panel
